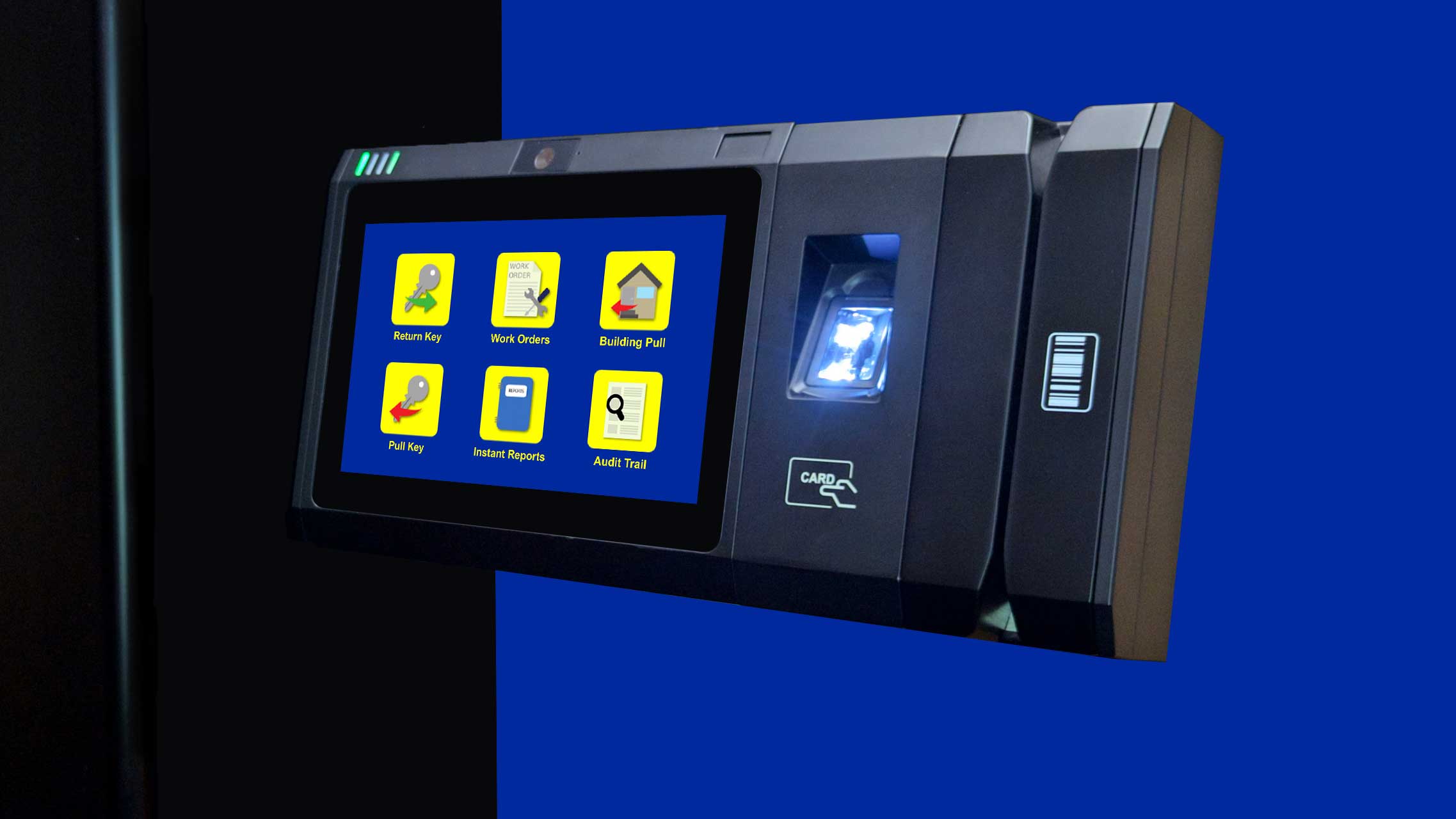

Standard Touch Key Control System
The Standard Touch provides reliable and efficient key management solutions with its user-friendly 7″ touchscreen interface, Wi-Fi and ethernet connection and essential security features.
Products

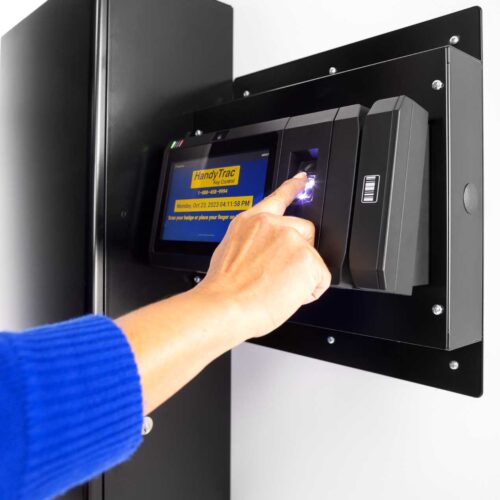

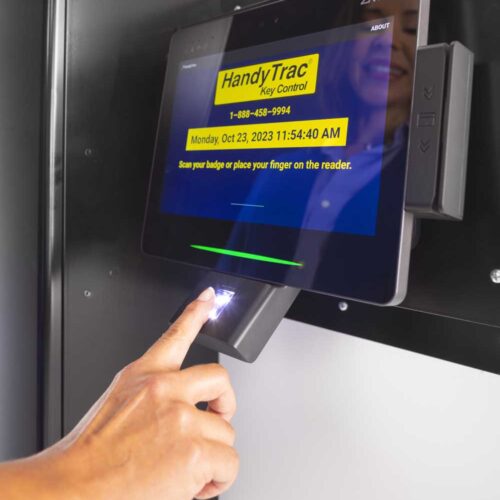

Fingerprint scanner assures only authorized staff can access system
User-friendly touch screen makes key pull quick and easy
Instant reporting and audit trail available on touch screen and website
HandyTrac Product Features
- The patented HandyTrac Online program provides ongoing internet system/information access, secure data backup and storage, support/warranty service, training, and system upgrades.
- HandyTrac is an integrated system that provides the software and hardware you need to manage keys and assets
- HandyTrac’s computer controlled, locking steel wall mounted cabinet(s) provide the highest level of safety and security, so only authorized users have access to keys
- HandyTrac system does not require a dedicated or special computer system

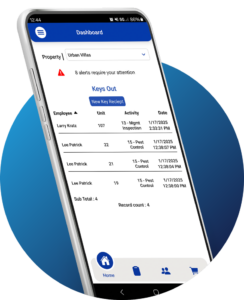

- HandyTrac system administrative functions and reporting available from any computer with Internet access
- Each key within the HandyTrac system is traceable
- HandyTrac system offers several reporting options, with standard and customized reports available to streamline operations and to track keys, assets, locations, and the people who use them
- HandyTrac identifies keys by using anonymous bar coded tags
- HandyTrac’s software and hardware combine to link all the cabinets within your system
- Wall mounted for ease of use and space conservation
- Bar code tags/badges
- Print reports directly from Amazon Web Services cloud platform
- Flame retardant Polycarbonate/ABS enclosure
- Integrated Biometric Identity verification available
Key Cabinet and Control Box
- Up to four (4) key panels 100 locations each (total capacity for single cabinet 400)
- Electronic lock/latch manual key backup
- Control Interface Relay (CIR) board between Datalog Touch Pad and Key Cabinet electronic lock

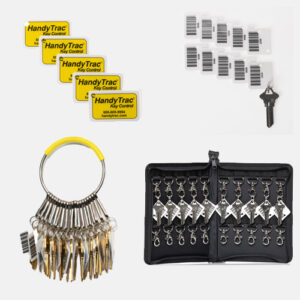

Software and Supplies
- HandyTrac Software (pre-installed into Datalog)

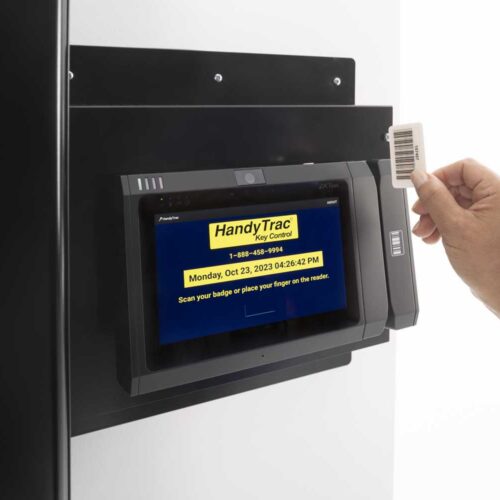

- Employee Identification Badges (bar coded)
- Bar Coded Key Tags
- Easy Guide for Installation and Operation
- Biometric Reader (optional)
- HandyTrac Key Organizer (optional)
Detailed System Specifications
System Specifications:

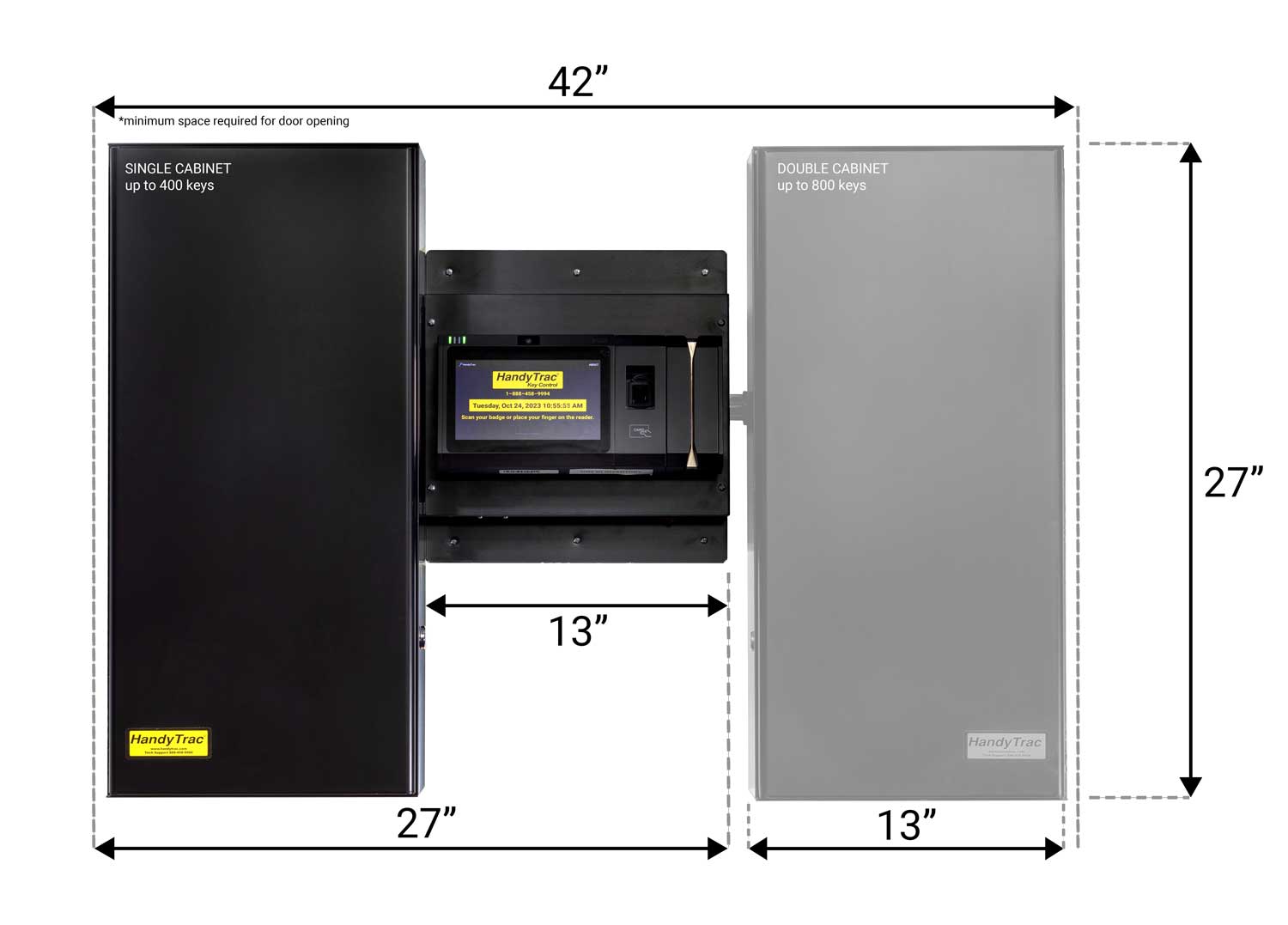

- Single Cabinet (up to 400 keys)- 28”H x 24”W x 8”D
- Dual Cabinet-(up to 800 keys)- 28’H x 42”W x 8”D Hardware Requirement
- Standard 120V – NEMA 5-15P (Type B)
- 18 gauge steel with black powder coat finish cabinet
- Touch screen interface with 8 core computer, real time calendar clock, touch screen keyboard, badge reader, communications interface.
- Full 7″ or 10” touch screen display
- Power Usage: 20w/30va MAX, 10w/18va NOMINAL
